Ultimate Guide To HDPE Geomembrane Sheet Price

High-Density Polyethylene (HDPE) geomembrane is one of the most widely used geosynthetic products in modern civil engineering, mining, aquaculture, and environmental protection projects. It serves as an impermeable barrier against liquids, gases, and contaminants. However, when international buyers or project contractors plan to purchase HDPE geomembrane sheets, one of the first questions they ask is: “What is the HDPE geomembrane sheet price?”

In this article, GEOSINO will provide a comprehensive explanation of HDPE geomembrane pricing, the key factors affecting cost, the market price range in 2025, and practical tips to help you make a cost-effective and high-quality procurement decision.

1. What Is HDPE Geomembrane Sheet?

HDPE geomembrane sheet is a kind of waterproof barrier material made from high-density polyethylene resin. It is produced through advanced co-extrusion blow molding or flat extrusion technology. The main characteristics of geomembrane are:

• Excellent impermeability — the permeability coefficient is usually less than 1×10⁻¹⁴ cm/s.
• High chemical resistance — resistant to acids, alkalis, salts, and most organic solvents.
• UV resistance — stabilized by carbon black, suitable for long-term outdoor exposure.
• Durability — service life can reach 50 years under proper installation and protection.
• Flexibility — adaptable to uneven surfaces and ground settlement.

Common thicknesses of HDPE geomembrane range from 0.5 mm to 3.0 mm, and the width is generally 5 m to 8 m, which can reduce the number of welds and improve construction efficiency.

2. Applications of HDPE Geomembrane

HDPE geomembrane has a broad application spectrum in civil engineering and environmental projects. Typical applications include:

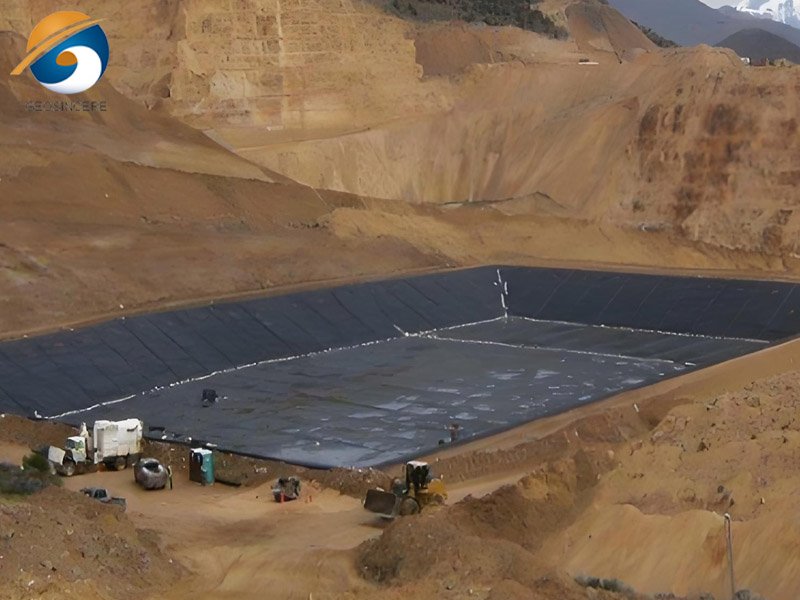

2.1 Landfills and Waste Containment

Acting as the primary barrier, this bottom liner system first contains all leachate within the landfill. Subsequently, the engineered capping layer then seals the waste, thereby isolating it from the environment. Together, these integrated systems work continuously to block contaminant pathways. Furthermore, they actively prevent leachate from escaping into the subsoil. As a result, they provide a reliable, multi-layered defense. Consequently, this crucial function effectively safeguards groundwater resources from potential pollution for the long ter

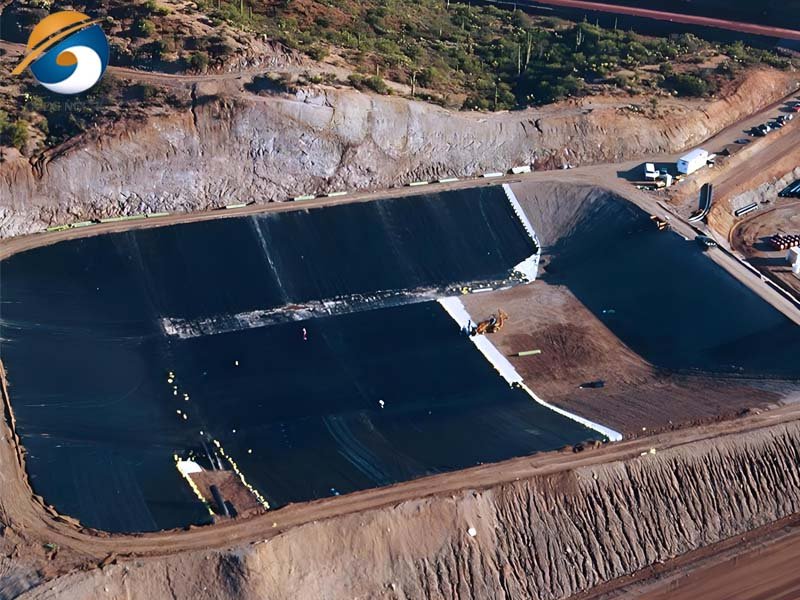

2.2 Mining Projects

This high-performance liner system primarily functions as a critical barrier for multiple industrial containers. It actively lines heap leach pads, for instance, to capture valuable solutions. Simultaneously, it seals tailing dams, thereby securely immobilizing mining byproducts. Furthermore, the material reliably contains chemicals within storage and evaporation ponds. As a result, it consistently prevents the seepage of hazardous liquids into the surrounding soil and groundwater. Ultimately, this integrated lining solution provides essential environmental protection across various demanding applications.

2.3 Aquaculture and Fish Ponds

This system actively prevents water from seeping through its barrier. As a result, it maintains a consistently stable aquatic environment within the pond or reservoir. Furthermore, by effectively containing the water, it ensures a reliable habitat for aquatic life and preserves the intended water level. Consequently, this dual function safeguards both the structural integrity of the surrounding area and the ecological balance of the water body itself.

2.4 Water Reservoirs and Canals

This system primarily functions by effectively controlling seepage, thereby minimizing unnecessary water loss. As a result, it directly conserves vital water resources. Furthermore, this dual-action approach ensures maximum efficiency in water retention for reservoirs, canals, and agricultural use. Consequently, it actively supports sustainable water management and enhances the long-term availability of this essential resource for communities and the environment.

2.5 Oil and Gas Industry

This geomembrane liner system actively serves two primary purposes. It is first deployed to create reliable secondary containment areas around storage tanks or pipelines, thereby safely catching any potential spills. Furthermore, it is equally crucial for lining large-scale evaporation ponds. In this role, it effectively contains process water or brine, allowing it to naturally concentrate through solar evaporation. Consequently, this versatile solution consistently prevents soil and groundwater contamination while supporting efficient industrial water management.

2.6 Tunnel and Dams

This engineered membrane primarily acts as a high-performance anti-seepage layer. By forming a continuous, impermeable barrier, it directly blocks water migration. Consequently, it effectively protects critical structures—such as foundations, tunnels, and retaining walls—from damaging water infiltration. Furthermore, this proactive defense significantly reduces long-term deterioration risks, thereby extending the service life of the infrastructure and ensuring its structural integrity over time.

Because of these versatile applications, the HDPE geomembrane sheet has become a globally demanded material. Consequently, understanding the price structure is crucial for both distributors and end-users.

3. Factors That Influence HDPE Geomembrane Sheet Price

There is no single fixed price for HDPE geomembrane because the cost depends on several variables. Below are the main factors that determine the price per square meter.

3.1 HDPE Geomembrane Sheet Price – Thickness and Density

The most direct factor influencing price is thickness. The thicker the sheet, the more raw material it requires, leading to a higher cost.
For example, a 0.5 mm HDPE geomembrane may cost around USD 0.7–1.0/m², while a 2.0 mm sheet can reach USD 2.5–3.5/m² depending on quality and brand.Density (which is around 0.94–0.97 g/cm³ for HDPE) also affects mechanical strength and flexibility, but usually, the change in density has less impact on price compared to thickness.

3.2 HDPE Geomembrane Sheet Price – Raw Material Cost

HDPE resin (typically from brands like Sinopec, ExxonMobil, or Dow) accounts for 60–70% of the total product cost.
HDPE resin prices fluctuate according to international crude oil prices, as it is derived from petroleum.
In 2025, the global HDPE resin price has been hovering around USD 1100–1300 per ton, which directly influences the geomembrane price.

3.3 HDPE Geomembrane Sheet Price – Additives and Carbon Black Content

To enhance UV resistance and extend service life, manufacturers add 2–3% carbon black and antioxidants.
High-quality geomembrane sheets that use imported additives or uniform carbon black dispersion have slightly higher prices but offer much better performance in long-term exposure.

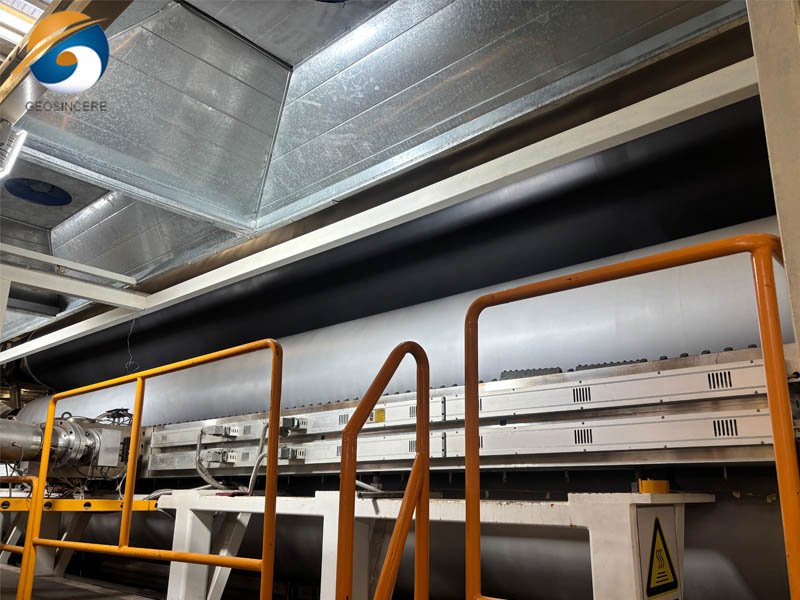

3.4 HDPE Geomembrane Sheet Price – Manufacturing Process and Quality Control

There are mainly two production methods:

• Blown Film Process
• Flat Die Extrusion

The flat die extrusion method generally produces smoother, more uniform sheets with better tensile strength, but it requires more advanced equipment and higher production cost.Suppliers with GSM-certified quality systems or G/T 17643 and ASTM standards usually offer higher prices, but their products are more stable and reliable.

3.5 HDPE Geomembrane Sheet Price – Surface Type: Smooth or Textured

• Smooth geomembrane: used for ponds, tanks, and containment systems.
• Textured geomembrane: provides better friction and is ideal for slopes and steep embankments.

Textured geomembranes are about 10–15% more expensive due to the additional texturing process.

3.6 HDPE Geomembrane Sheet Price – Order Quantity and Packaging

Bulk orders significantly reduce unit costs because manufacturers can optimize production and logistics.
For example, ordering 20,000 m² might cost USD 0.05–0.1/m² less than smaller quantities.

3.7 HDPE Geomembrane Sheet Price – Freight and Export Location

For export, the shipping cost (especially sea freight) plays a vital role in the total landed price.
A 40-foot container can load around 14–24 tons of HDPE geomembrane, depending on thickness.
Shipping to Southeast Asia costs less than shipping to Latin America or Africa, so the CIF price can differ by USD 0.2–0.5/m².

4. How to Evaluate the Cost-Performance Ratio

When evaluating HDPE geomembrane prices, the cheapest option is not always the most economical.
You should consider the service life, installation cost, and environmental risk of the material.

Here are a few key tips from GEOSINO’s engineering team:

Choose 100% Virgin Material

Recycled material geomembranes are 20–30% cheaper, but their lifespan is often less than 5 years in outdoor use.

For critical projects like landfills or reservoirs, only virgin HDPE resin should be used.

Ask for Third-Party Test Reports

Reliable manufacturers provide ASTM or GRI GM13 standard test reports for tensile strength, puncture resistance, elongation, and carbon black content.

Check Welding Compatibility

Some low-quality sheets contain too much filler, which affects welding performance.

A poor weld can cause leakage even if the sheet itself is thick.

Consider Installation Services

Professional welding and installation can cost USD 0.3–0.8/m², depending on the site condition.

Choosing a supplier who provides both materials and technical guidance can save cost and time.

5. Price Comparison: HDPE vs. LLDPE vs.Geomembranes

Although HDPE geomembrane is slightly more expensive than PVC, its durability and chemical resistance make it more cost-effective in the long term.

6. Procurement and Shipping Suggestions for Buyers

If you are sourcing HDPE geomembrane sheets internationally, consider the following suggestions to optimize cost and efficiency:

Confirm Technical Specifications Early

Clarify thickness, color, surface type, and standard (ASTM, GRI GM13, ISO) before quotation.

Order in Full Container Loads

Helps you save on sea freight and packaging costs.

Choose Reliable Exporters

Look for companies with export licenses, CE certificates, and quality management systems.

Ask for Free Samples

Evaluate physical properties and weldability before mass purchase.

Inspect Before Shipment

Request factory inspection reports or third-party inspection (e.g., SGS, BV).

Check Packaging

Each roll should be wrapped with black woven fabric or plastic film to protect against UV and moisture during transport.

7. Why Choose GEOSINO as Your HDPE Geomembrane Supplier

GEOSINO is a professional geosynthetics manufacturer and exporter located in China, specializing in HDPE, LLDPE, and textured geomembrane sheets.
With years of experience serving clients in Asia, Africa, Latin America, and the Middle East, we are confident to provide cost-effective and high-quality solutions.

Our Advantages

• ISO9001 & ISO14001 certified factory.
• Raw material from Sinopec or Sabic (100% virgin HDPE).
• Advanced co-extrusion production lines.
• Customized roll size and OEM packaging available.
• Prompt delivery and strong export support.

Typical Project Cases

• 1.5mm HDPE liner for landfill in Saudi Arabia (100,000 m²).
• 1.0mm smooth geomembrane for aquaculture in Thailand.
• 2.0mm textured geomembrane for mining tailings in Peru.

8. Conclusion

The HDPE geomembrane sheet price depends on various technical and market factors such as thickness, resin cost, surface texture, and logistics.
In 2025, the general global price range lies between USD 0.7–5.0 per square meter, depending on specifications.

When choosing a geomembrane supplier, buyers should not only focus on the lowest unit cost but also evaluate the material quality, installation performance, and long-term reliability.A high-quality HDPE geomembrane from a reputable manufacturer like GEOSINO ensures better waterproofing, longer lifespan, and reduced maintenance costs — delivering real value for your investment.

If you are looking for a reliable HDPE geomembrane manufacturer in China, feel free to contact GEOSINCERE for the latest quotation and technical support.
We are always ready to provide professional advice and the best solutions for your project.
