Sheet drain, also known as dimple drain sheets, is a three-dimensional plate with bumps or holes made of high-density polyethylene material through a special manufacturing process. The composite sheet drain can be connected to waterproof materials, concrete or wood with metal pins, construction adhesive or double-sided tape to form an efficient filtration and drainage system. Sheet drains are an ideal drainage solution for foundation walls, behind retaining walls and in green roof applications.
Sheet Drain
Description

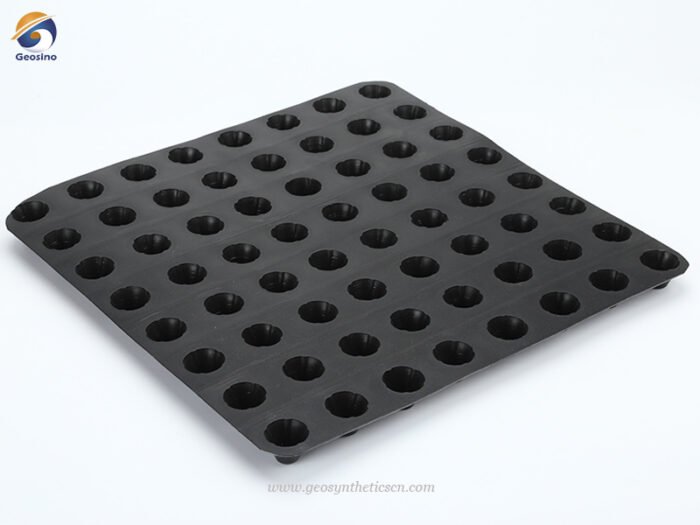

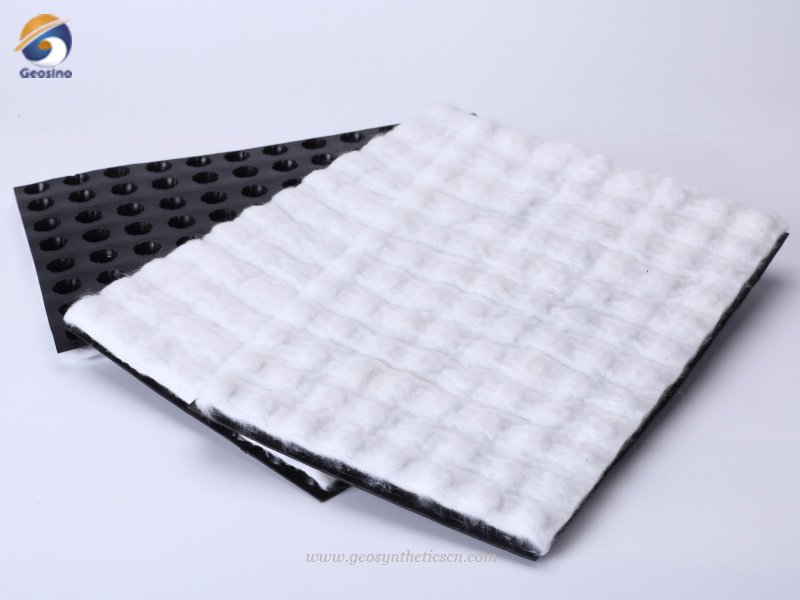

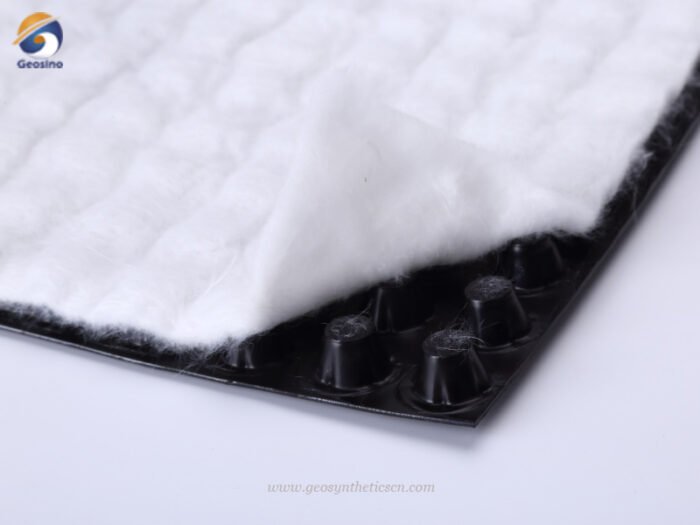

Sheet drain, also known as dimple drain sheets, is a three-dimensional plate with bumps or holes made of high-density polyethylene material through a special manufacturing process. The dimple drainage structure allows for a high flow rate while an outer layer of permeable geotextile prevents debris from entering the drainage channel. The HDPE sheet drain can be bonded with non woven geotextile by hot pressing on one or both sides. The core of the internal HDPE three-dimensional water storage and polypropylene drainage sheets has excellent compressive strength and drainage performance. The external non woven geotextile has excellent permeability, wear resistance and slip resistance and can effectively prevent sand and gravel particles from entering the HDPE drainage sheets. The unique concave-convex hollow vertical rib structure of the storage and drainage plate can quickly and effectively drain rainwater, greatly reducing the hydrostatic pressure of the waterproof layer, so as to achieve the effect of active waterproofing. The composite sheet drain can be connected to waterproof materials, concrete or wood with metal pins, construction adhesive or double-sided tape to form an efficient filtration and drainage system. Sheet drains are an ideal drainage solution for foundation walls, behind retaining walls and in green roof applications.
Sheet Drain Specifications
| Item | Unit | BDS10 | BDS12 | BDS122 |
|---|---|---|---|---|
| Core Properties | ||||
| Core structure |
Single Cuspated Flat Back |
Single Cuspated Flat Back | Single Cuspated Flat Back | |
| Cuspation Height | mm | 10 | 12 | 12 |
| Core Material | Virgin HDPE | Virgin HDPE | Virgin HDPE | |
| Material Thickness | mm | 1 | 1 | 1.2 |
| Geotextile Properties | ||||
| Structure | Needle Punched, Heat Pressed | Needle Punched, Heat Pressed | Needle Punched, Heat Pressed | |
| Type | PET Filament | PET Filament | PET Filament | |
| Weight | gsm | 200 | 150 | 250 |
| Color | gsm | White | Grey | Black |
| Sheet Drain Properties | ||||
| Discharge Capacity | L/m/min | 145 | 155 | 185 |
| Compressive strength | kPa | 280 | 260 | 310 |
| Roll Width | m | 0.9 | 1.2 | 1.4 |
| Roll Length | m | 25 | 25 | 25 |
Sheet Drain Features
- Has the dual characteristics of HDPE and geotextile
- Excellent Flow Capacity
- Superior water collection ability
- High compressive strength
- Good filtering performance
- Excellent drainage and stagnant water performance
- Good wear resistance
- Shotcrete reinforcement
- Minimal Excavation
- Light weight
- Easy to transport
Sheet Drain Applications

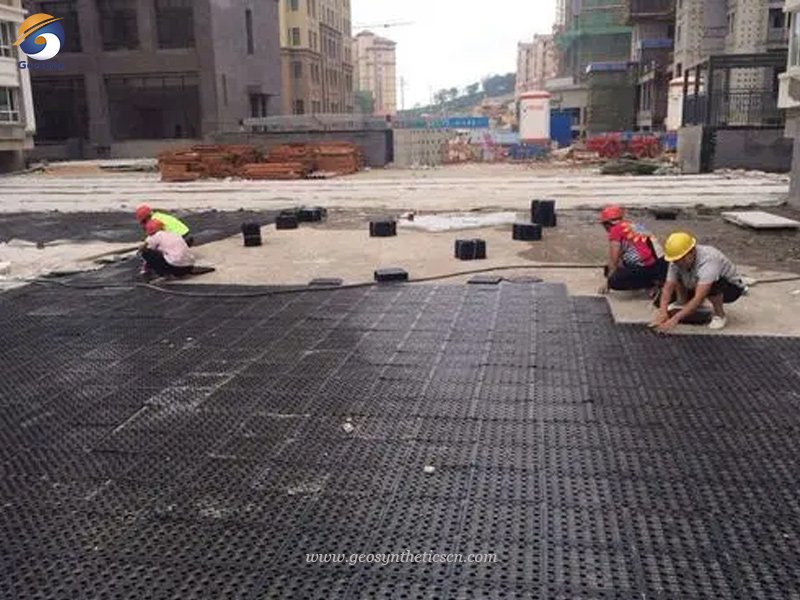

- Greening project. Roof garden, vertical greening, sloping roof greening, football field, golf course, etc.;
- Municipal engineering. Airports, roads and subgrades, subways, tunnels, landfills.
- Construction engineering. The upper or lower floor of the building foundation, the interior and exterior walls and bottom of the basement, the roof, the impermeable and thermal insulation layer of the roof, etc.

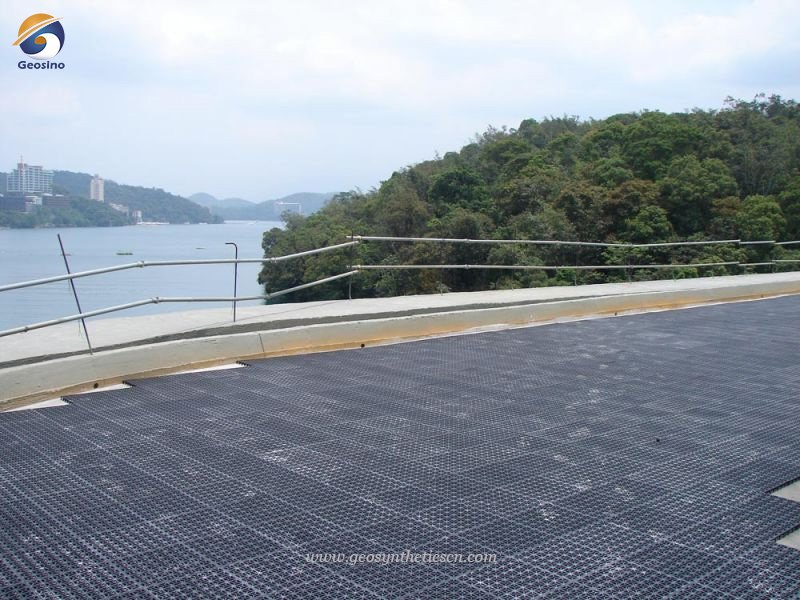

- Water conservancy projects. Anti-seepage water of reservoirs, reservoirs, artificial lakes.

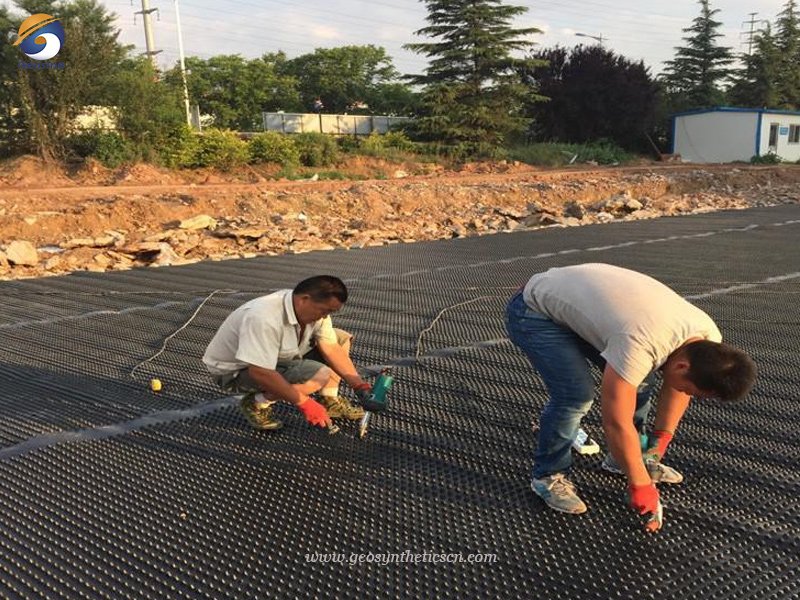

- Traffic engineering. Highways, railway subgrades, dams and slope protection layers.
